Part 2 - Wireguard Instance and Peers

Categories:
Tags:

Configuring the VPN on OPNsense

In this section a Wireguard Instance and Peer will be configured on OPNsense, This essentially forms a virtual cable from your router to VPN.

Create a Wireguard Instance

  1. Log into OPNsense via the web interface
  2. In the sections browse to VPN -> Wireguard -> Instances
  3. Click + to configure a new Instance
  4. Fill in the details as follows (anything not listed should be left blank)
Field Value Notes
Name wg_mullvad_instance
Private Key Interface.PrivateKey from Wireguard file
Tunnel Address Interface.Address from Wireguard file /127, not 128
Disable Routes Ticked

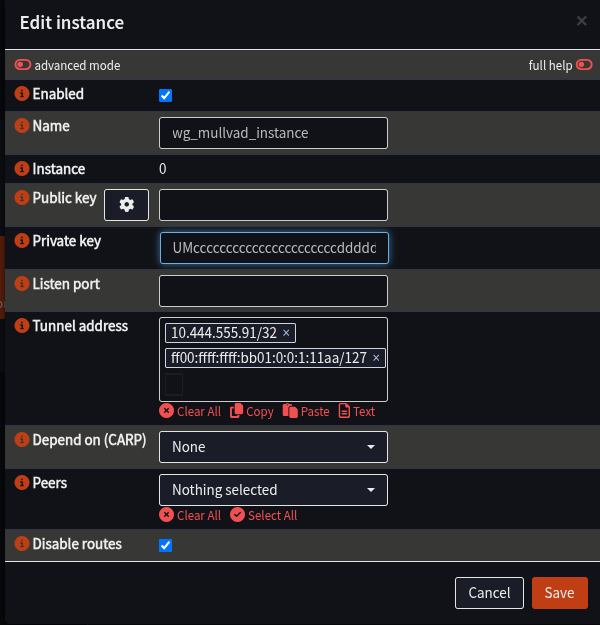

Wireguard Config File
  1. Click Save to close the window, you should see the Instance appear
  2. Click Apply to load the instance into Wireguard

Create a Wireguard Peer

Here the peer of the VPN will be configured for the instance to connect to.

  1. Ensure the Web Interface is at VPN -> Wireguard -> Instances
  2. Select the Peers tab
  3. Click “+” to configure the peer
  4. Fill in details as follows:
Field Value Notes
Name wg_mullvad_peer
Public Key Peer.PublicKey from Wireguard file
Allowed IPs Peer.AllowedIPs from Wireguard file
Endpoint Endpoint from Wireguard file e.g. 333.111.222.47
Endpoint Port Endpoint_Port from Wireguard file Most likely: 51820
Instance wg_mullvad_instance

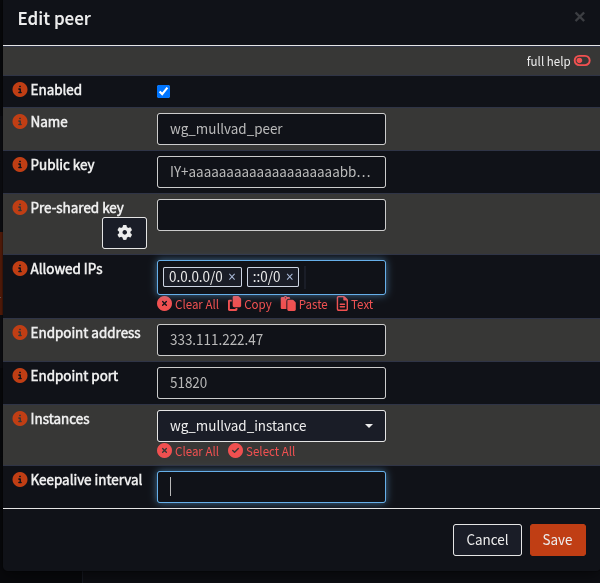

Wireguard Edit Peer
  1. Click Save to close the window
  2. Click Apply to load the peer into Wireguard

Enable Wireguard and confirm the Tunnel is working

  1. Navigate to VPN -> Wireguard -> Instances
  2. Tick the box next to Enable Wireguard

Enable Wireguard Check

  1. Click Apply
  2. Navigate to VPN -> Wireguard -> Status
  3. Confirm Status has green ticks next to the two lines for your peer and an interface with the same Device Name as your peer (e.g. “wg0”, yours may differ)

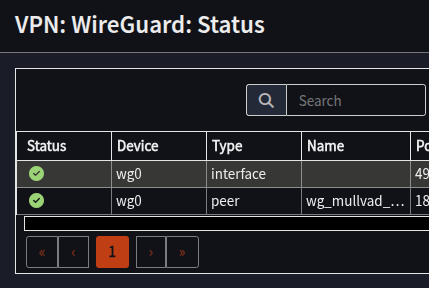

Wireguard Instance Peer Status

At this point, the VPN is configured, the tunnel is up, we’ve essentially connected a cable from the router to the VPN provider. It can’t be used yet as the router doesn’t know what to do with your traffic.

Next step is to configure the Interface and Gateways.

Troubleshooting

If you don’t have green ticks:

  • Have a look in VPN -> Wireguard -> Log File to see if there is more information as to what’s gone wrong, and double check the instance and peer configuration.
  • Restart the Wireguard service:
    • Visit Lobby -> Dashboard
    • Scroll down to Services
    • Locate WireGuard wg_mullvad_instance
    • Click Restart next to it
  • If you have one green tick and a grey question mark:
    • Check your Tunnel Address for the instance has “/127” in it and not “/128”

With all this complete, proceed to Part 3 - Interface and Gateways
